| Product Attribute | Attribute Value |
|---|---|
| Accuracy | ±.1/4% of Full Scale |
| Depth | 0.157" (4mm) |
| Dimensions | 66.7 x 108 x 95.3 mm |
| Display Type | Analog |
| Function | TIMER |
| Input Signal Type | Contact Closure |
| Length | 2.625" (66.7mm) |
| Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -23 °C |
| Mounting Style | Panel Mount |
| Primary Type | Reset Timer |
| Series | |
| Supply Voltage | 120VAC |
| Temperature Operating Range | -23 to 60 °C |
| Terminal Type | Screw |
| Termination | Screw |
| Type | Reset Timer |
| Width | 4.252" (108mm) |
Overview

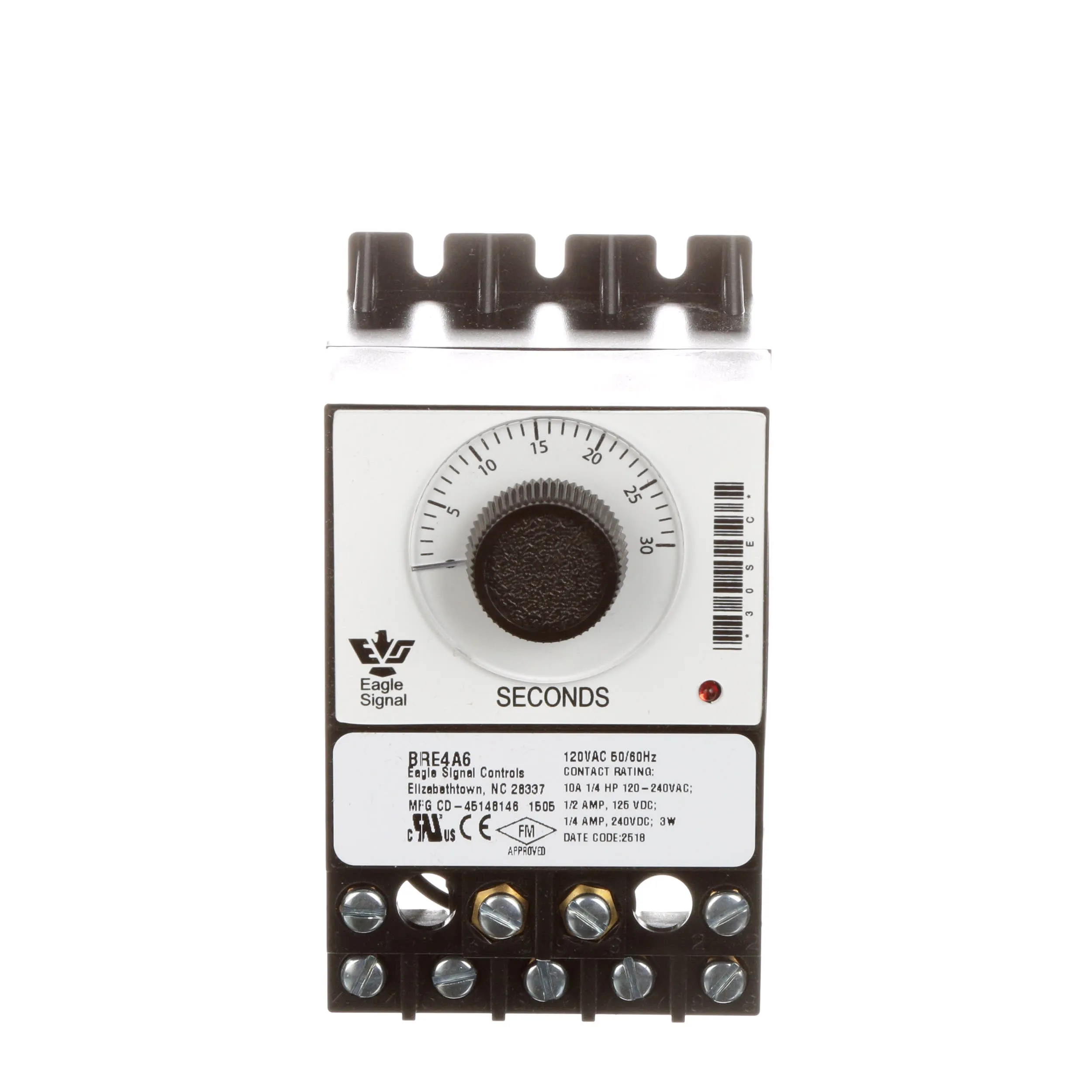

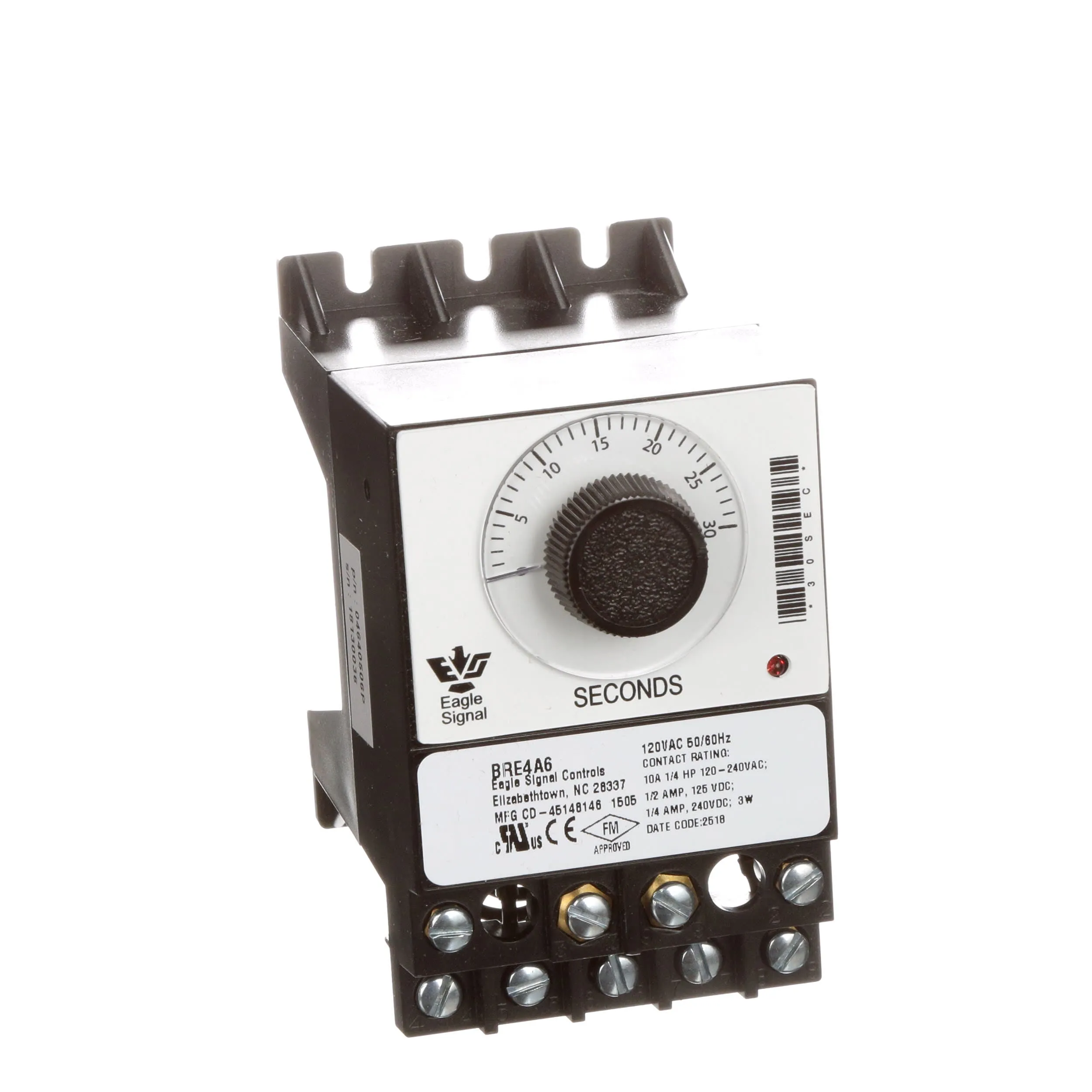

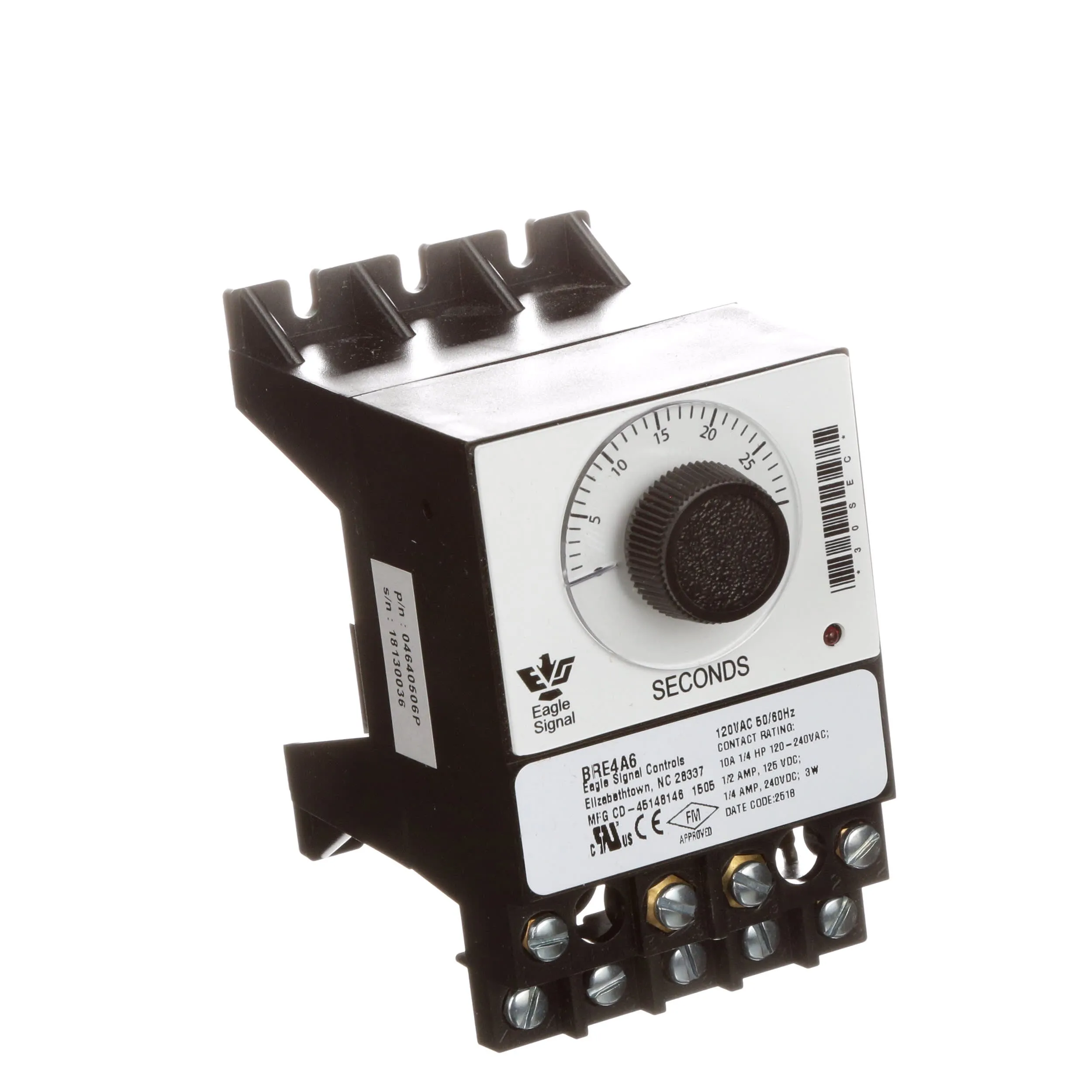

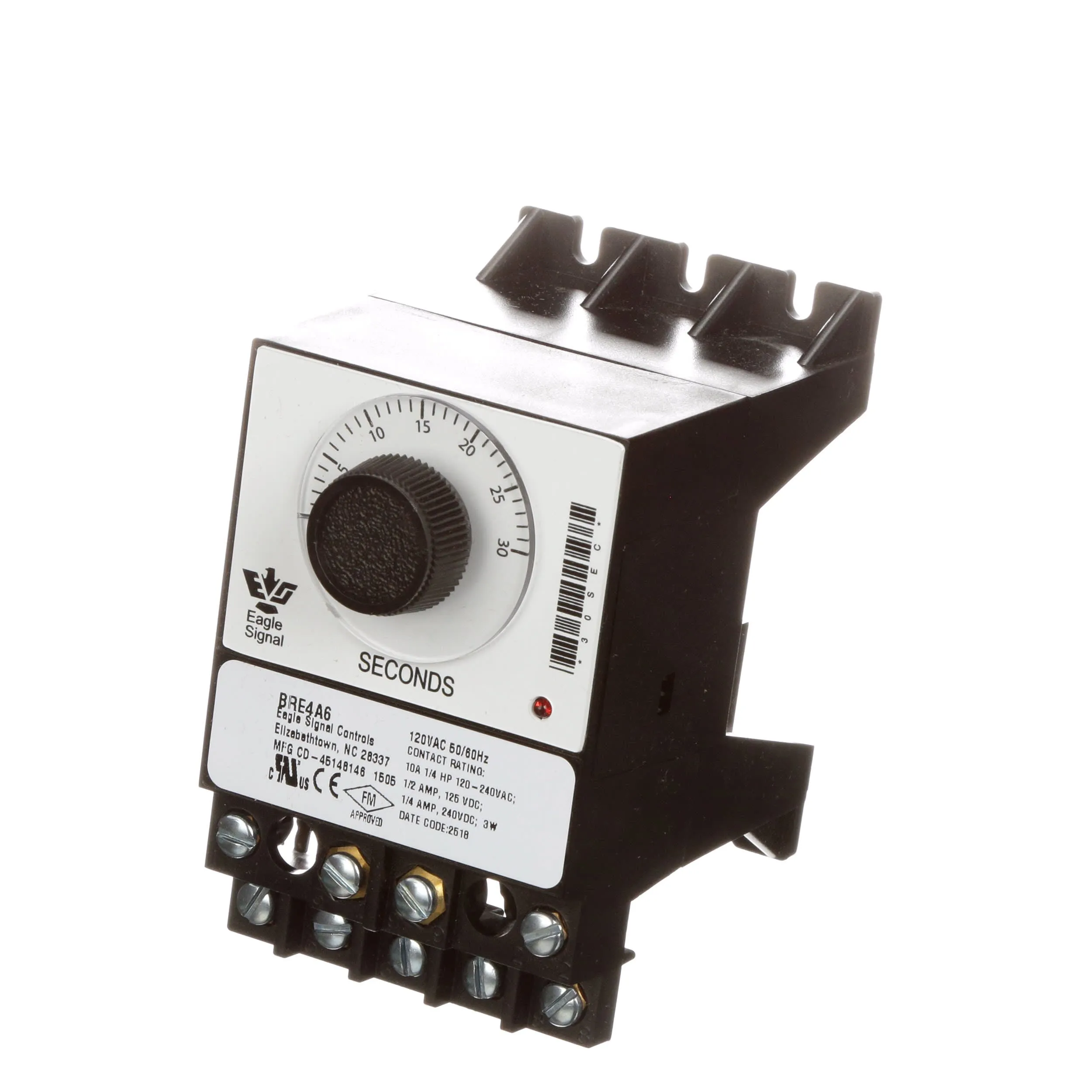

BRE enclosed construction with front facing dial and knob. The BRE timer has a heavy duty terminal block, with 9 screw terminals that will readily accept 16 gauge wire commonly used in industrial circuit wiring.
The case of the BR series timer is injection molded Lexan®. This material is recognized by Underwriters Laboratories for use as the sole support of current carrying components. Lexan is self-extinguishing, has a high impact strength, and high dimensional stability.
Features:
