Manufacturer
Epson Corporation
Manufacturer Part Number
C11C605001
Manufacturer Website Address
Brand Name
Epson
Product Model
DFX-9000
Product Name

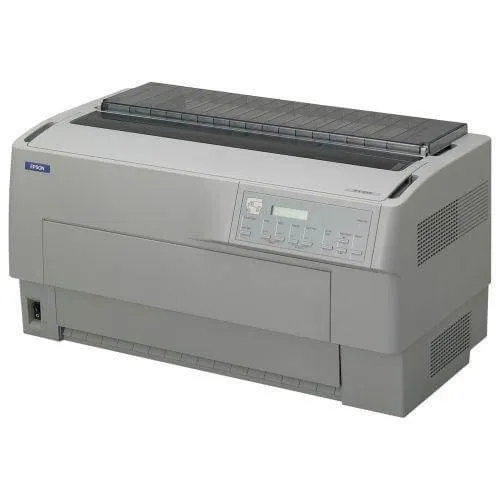

DFX-9000 Dot Matrix Printer
Marketing Information
A robust, dependable workhorse, the 9-pin, wide-format DFX-9000 printer boasts a 400-million character print head life and 15-million character ribbon cartridge, which minimizes production costs and reduces the need for frequent user intervention. Its advanced paper handling capabilities make it the perfect solution for a wide variety of applications, including critical spreadsheets, checks, invoices, bar codes and more.
Product Type
Dot Matrix Printer
Technical Information
|
Print Color Capability
|
Monochrome |
Maximum Mono Print Speed (cps)
|
1550 |
Number of Pins
|
9-pin |
Number of Columns
|
136 |
Memory
|
Standard Memory
|
128 KB |
Interfaces/Ports
|
Parallel Port
|
Yes |
Serial Port
|
Yes |
USB
|
Yes |
USB Standard
|
USB 1.1 |
Display & Graphics
|
Display Screen Type
|
LCD |
Media Types & Handling
|
Media Type
|
- Continuous Form
- Multiple Part Form
- Label
|
Media Size
|
- Custom Size
- 3"
- 16.50"
- 17"
- 2.50" x 0.94"
|
Media Handling
|
- Push Tractor - Front
- Push Tractor - Rear
|
Maximum Print Size
|
- 17" |
Fonts & Emulation
|
Language Emulation
|
|
Reliability
|
MTBF
|
20000 Hour |
Duty Cycle
|
100000 |
Power Description
|
Power Source
|
AC Supply |
Input Voltage
|
|
Operating Power Consumption
|
200 W |
Physical Characteristics
|
Form Factor
|
Desktop |
Product Color
|
White |
Height
|
14.3" |
Width
|
27.6" |
Depth
|
14.9" |
Weight (Approximate)
|
75 lb |
Miscellaneous
|
Additional Information
|
- Print direction (Graphics Mode): Unidirectional (bidirectional via software)
Character Sets:
- 11 character tables
- 13 international character sets
Paper Feed Methods:
- Dual push tractors/paper paths: Automatic back-out and loading
- Automatic paper thickness adjustment
- Automatic paper width detection
- Micro adjustment for top-of-form and tear-off mode
- Adjustable tractor feed
OPTIONAL interfaces (Not included):
- Twinax
- Coaxial
- Fast Ethernet
Paper Handling:
- Labels: 2.5 inch x 0.94 inch (minimum)
- Page length: 3.5 inch minimum for forms with labels
- Continuous forms size:
- Width: 3 - 16.5 inch
- Length: 3 - 17 inch
- Front: 1 original 9 copies
- Rear: 1 original 6 copies
|
Certifications & Standards
|
Energy star compliant
|
Platform Supported
|
PC |
Energy Star
|
Yes |
Environmentally Friendly
|
Yes |
Environmental Certification
|
ENERGY STAR |
Warranty
|
Limited Warranty
|
1 Year |
