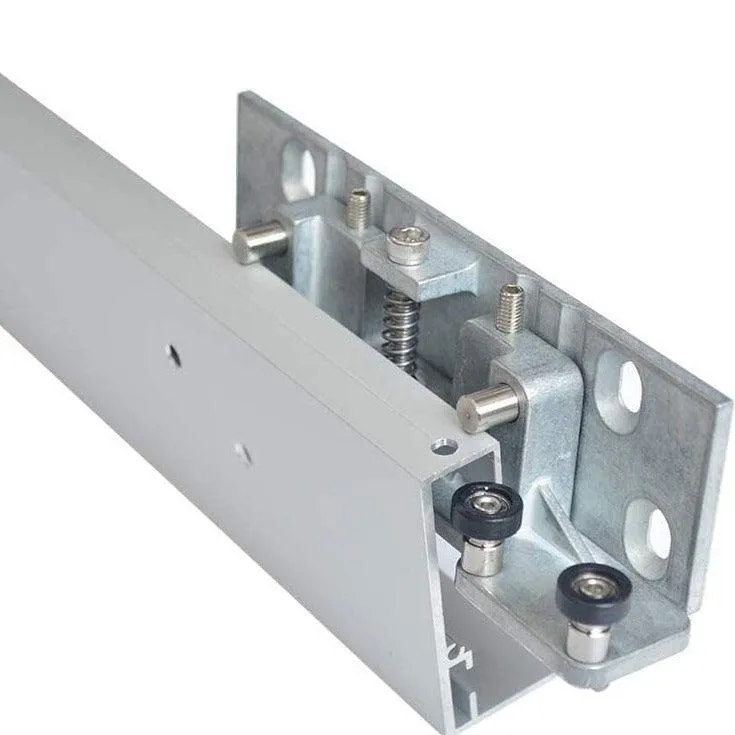

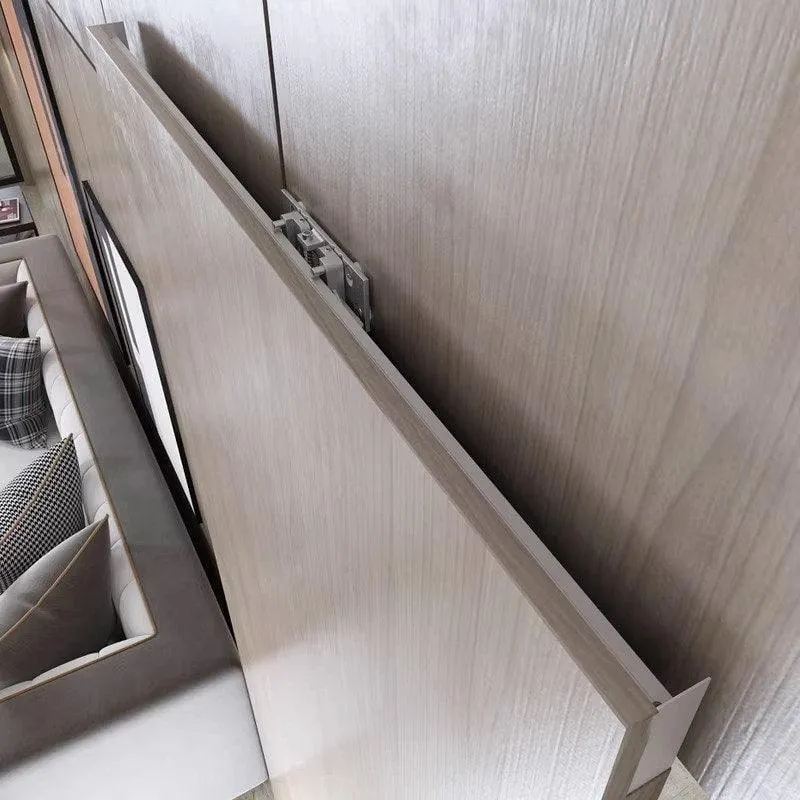

The Concealed Wall-Mounted Sliding Barn Door Hardware Kit is the perfect solution for those who want the aesthetic appeal of a sliding barn door without the bulky hardware on display. This kit features a minimalist design that mounts directly to the wall, completely concealing the track and rollers within the door.

Crafted from durable aluminium alloy, this hardware kit ensures smooth and effortless door movement, making it easy to slide open and close your door with minimal effort. The kit includes all the necessary components for a complete installation, including a track, rollers, wall mounts, and door stoppers.

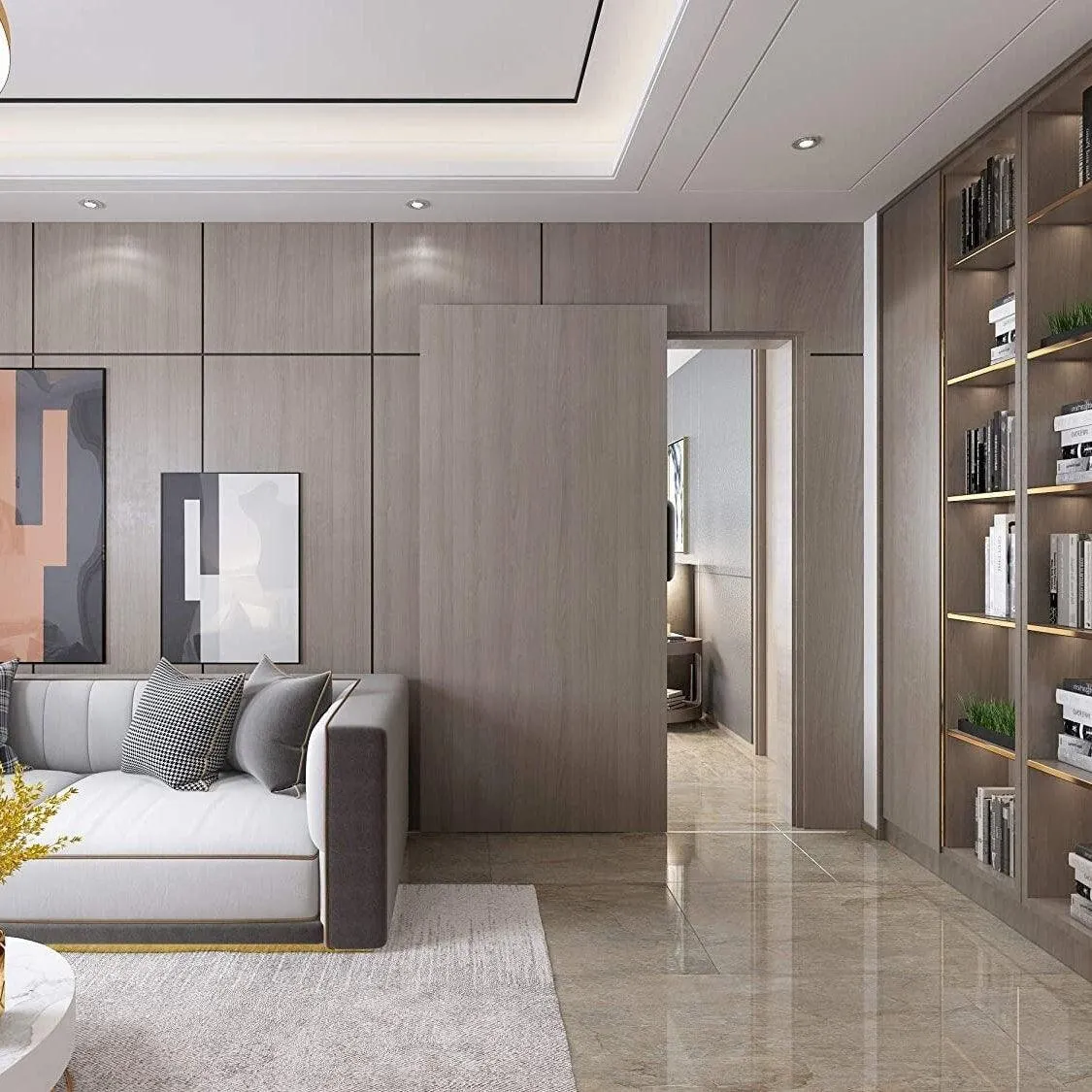

With its sleek and modern design, the Concealed Wall-Mounted Sliding Barn Door Hardware Kit is an excellent choice for homeowners, architects, and designers looking to elevate the look and feel of any interior space while maximizing functionality and convenience.

Maximum wight supported: 176 lb (80 kg).
Suitable for doors with a thickness of at least 1 3/4" (4.5cm).

• Small: 38" (96.5cm) can accommodate maximum opening width of 30"(76.2cm)
• Medium: 42" (106cm) can accommodate maximum opening width of 34" (86.4cm)
• Large: 48" (120cm) can accommodate maximum opening width of 40" (101.6cm)

Note the track can be cut for smaller door panels if size falls in between.

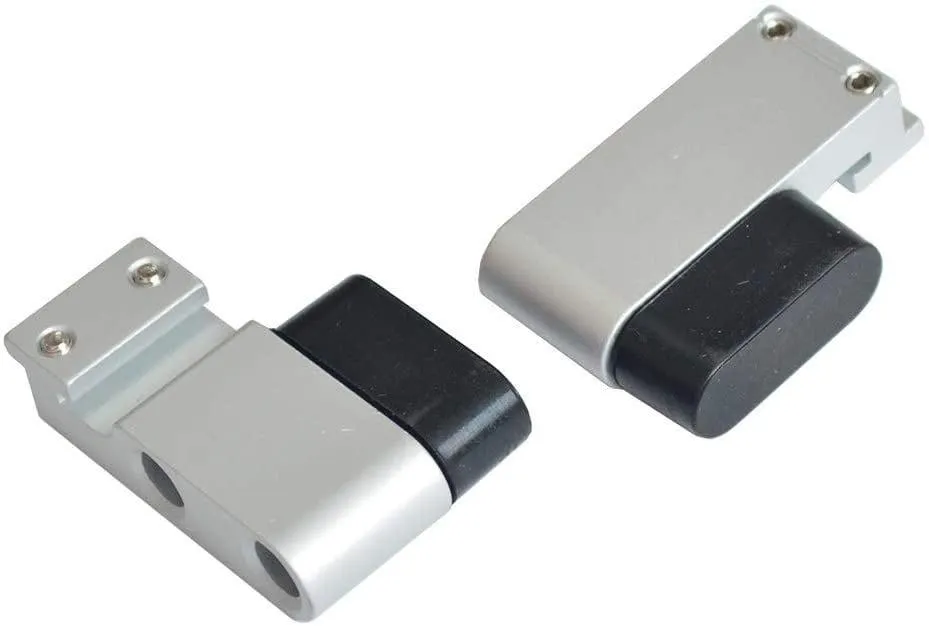

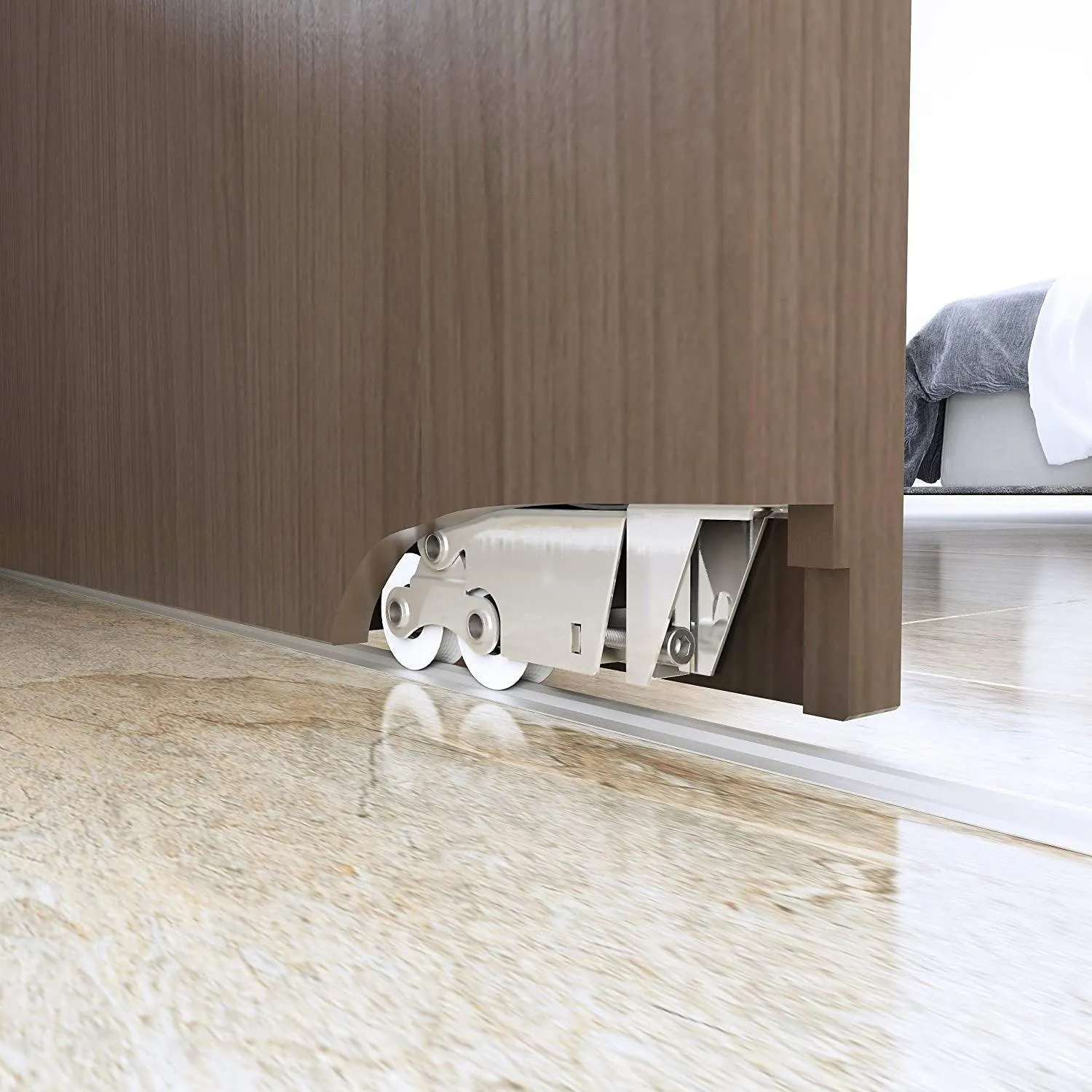

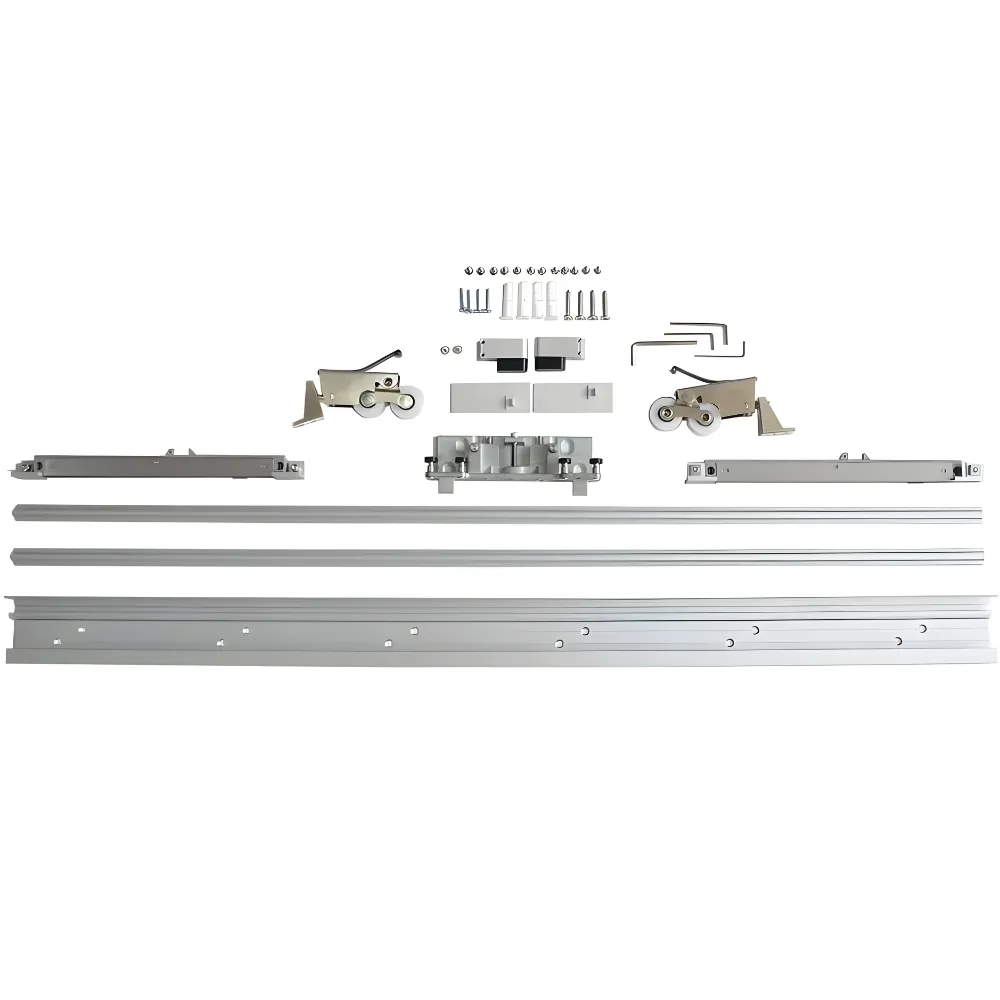

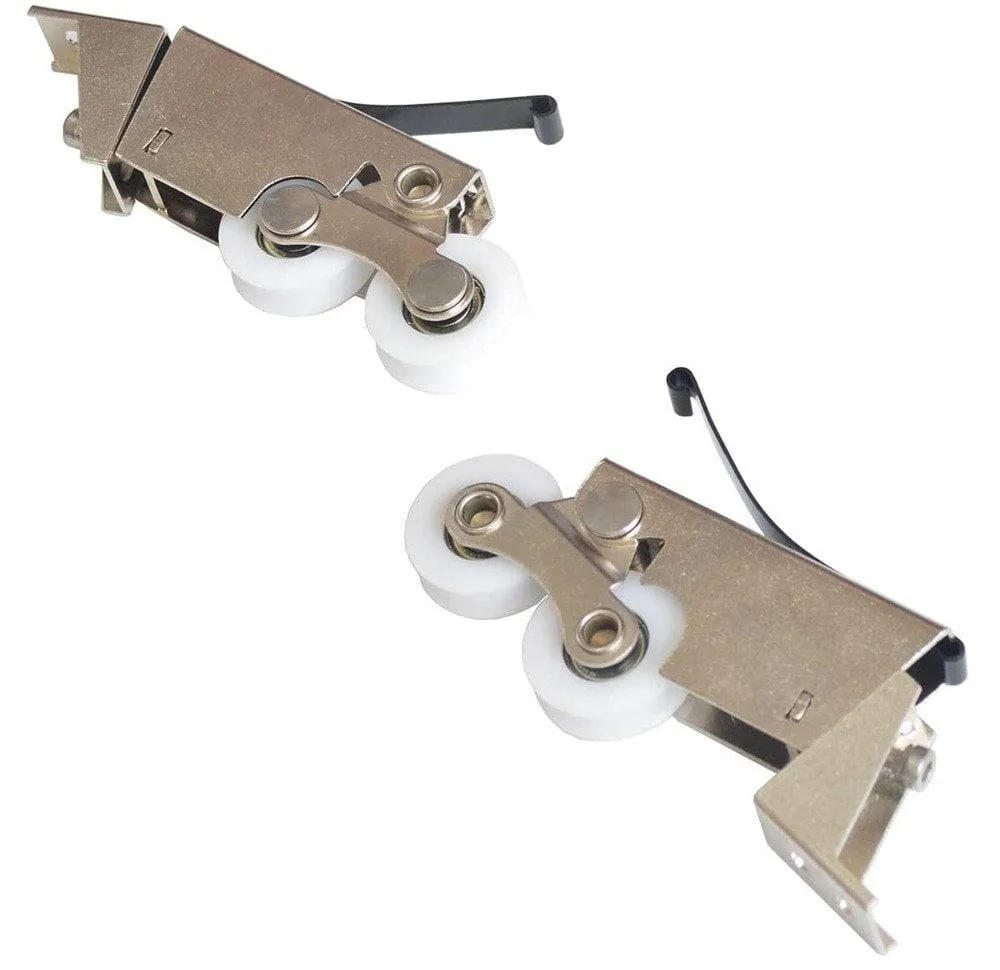

The full set of hardware includes one top rail (38"/42"/48" options available), two soft close mechanisms, two end caps, one top roller, two stops, two floor rollers, and two self-adhesive floor rails (please combine them).

To determine the appropriate length for the top rail, cut it according to the width of your door panel. The rail length should be equal to the door width minus 5/32". The bottom rail is self-adhesive and is shipped in two pieces to reduce shipping costs. The two stops included in the set can be adjusted by removing one on either end to reduce overlap, and each stop has a width of 1 1/4".

Hardware package does not include the door panel
