| Product Attribute | Attribute Value |
|---|---|
| Accuracy | ±0.01% % |
| Approvals | CE Compliant, ROHS, UL⁄cUL Recognized |

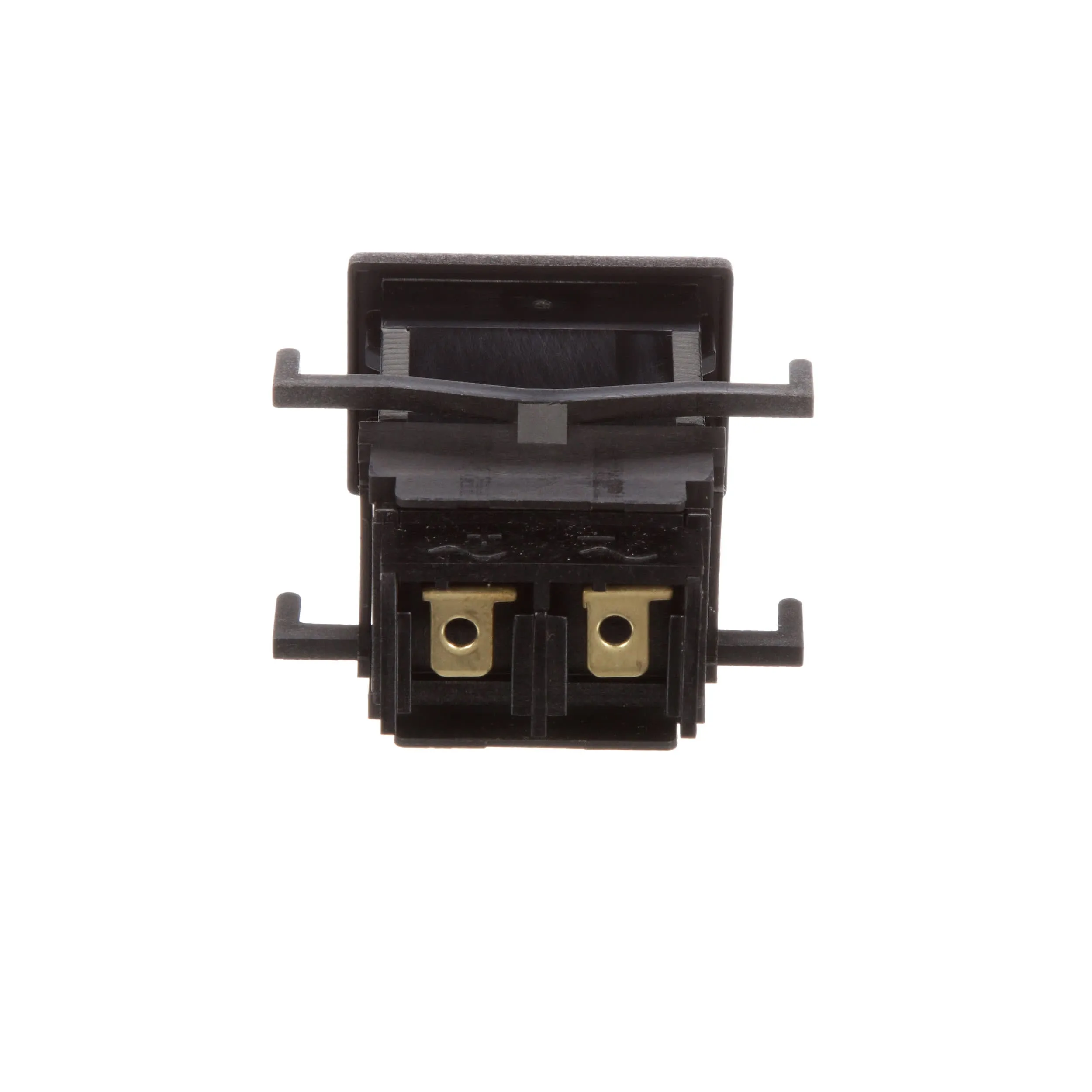

| Connection Type | Spade Terminal |
| Cut Out, Panel | 1.45×0.87 " |
| Dimensions | 2.45" L x 1.6" W x 1.08" H |
| Dimensions, Cutout, Inches | 1.45 x 0.87 in. |
| Display Digit Height | 3.6 mm |
| Display Type | Digital |
| Function | Hour Meter |
| Input Type | Voltage |
| Material, Casing | Black Polymer |
| Measurement Range | 0 to 99999.99 hrs. |
| Measuring Range | 0 to 99999.99 hrs. |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Panel |
| Number of Digits | 6 Digits |
| Primary Type | Electromechanical |
| Product Header | Electromechanical Hour Meter |
| Series | |
| Supply Voltage | 10 to 28 VDC VDC |
| Temperature Range | -40 to 82 °C |
| Temperature, Opening, Maximum | 82 °C |
| Type | Electromechanical |
