| Product Attribute | Attribute Value |
|---|---|
| Accuracy | ±0.02% % |
| Application | Use on construction machinery or leased equipment to determine usage, maintenance and warranty periods |
| Approvals | CSA Certified, UL Recognized |

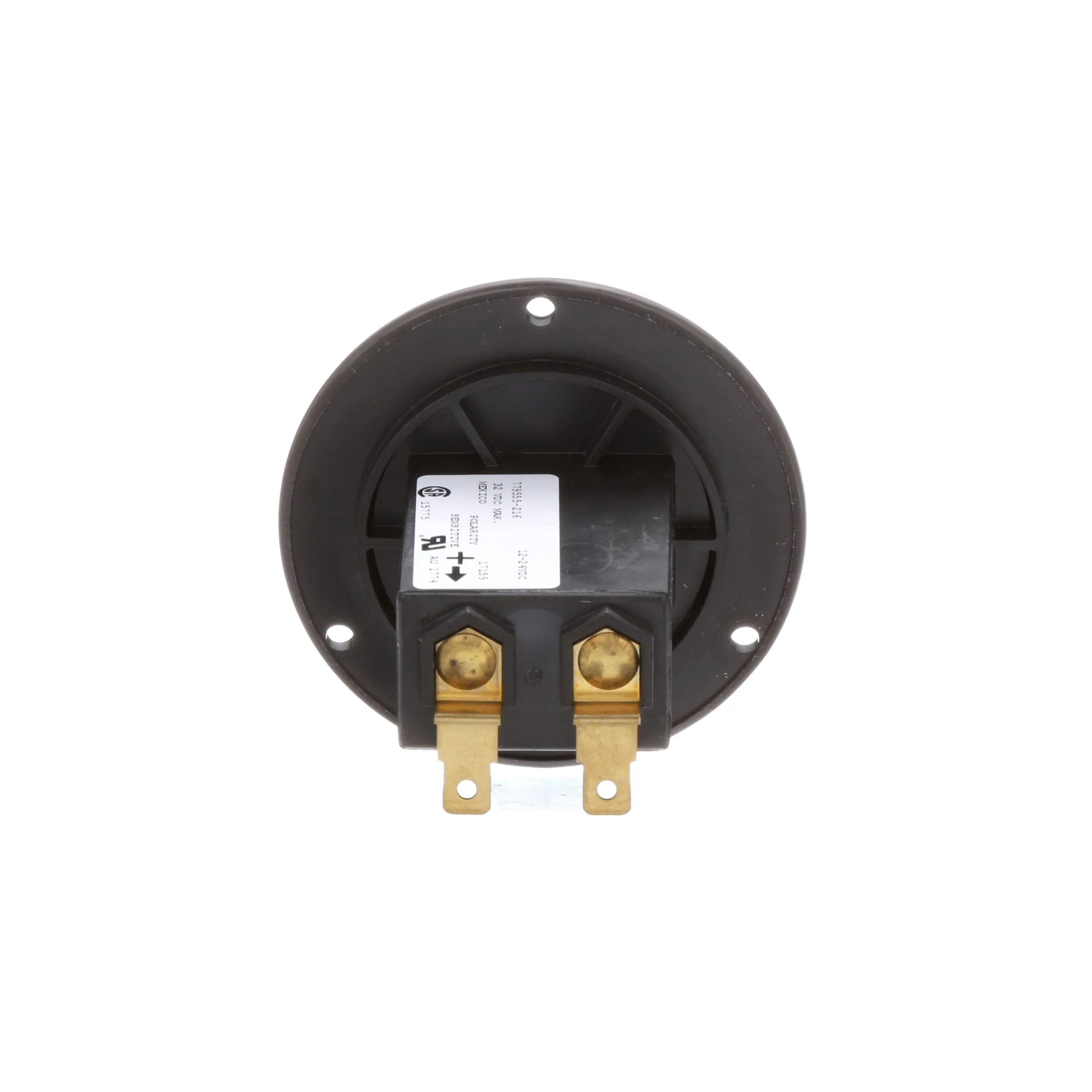

| Connection Type | Spade Terminal |
| Cut Out, Panel | 2 " Dia. |
| Depth | 0.197" (5mm) |
| Diameter, Hole | 0.15 in. |
| Dimensions | 1.9" H x 2.68" Dia. |
| Dimensions, Cutout, Inches | 2 (Dia.) in. |
| Display Range | 5 Digit, 9999.9 hr |
| Display Resolution | 1/10 |
| Display Type | Digital |
| Function | Hour Meter |
| Input Type | Voltage |
| Measurement Range | 0 to 9999.9 hrs. |
| Measuring Range | 0 to 9999.9 hrs. |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Panel |
| Number of Digits | 5 Digits |
| Operating Temperature | -40 to 85 °C |
| Primary Type | Electronic |
| Product Header | 7795 Series Hour Meter |
| Series | |
| Shape | Round |
| Standards | UL Recognized, CSA Certified |
| Supply Voltage | 10 to 32 VDC VDC |
| Temperature Range | -40 to 85 °C |
| Temperature, Opening, Maximum | 85 °C |
| Termination | Spade |
| Type | Electromechanical |
| Voltage Rating | 10 to 32 VDC |
Overview

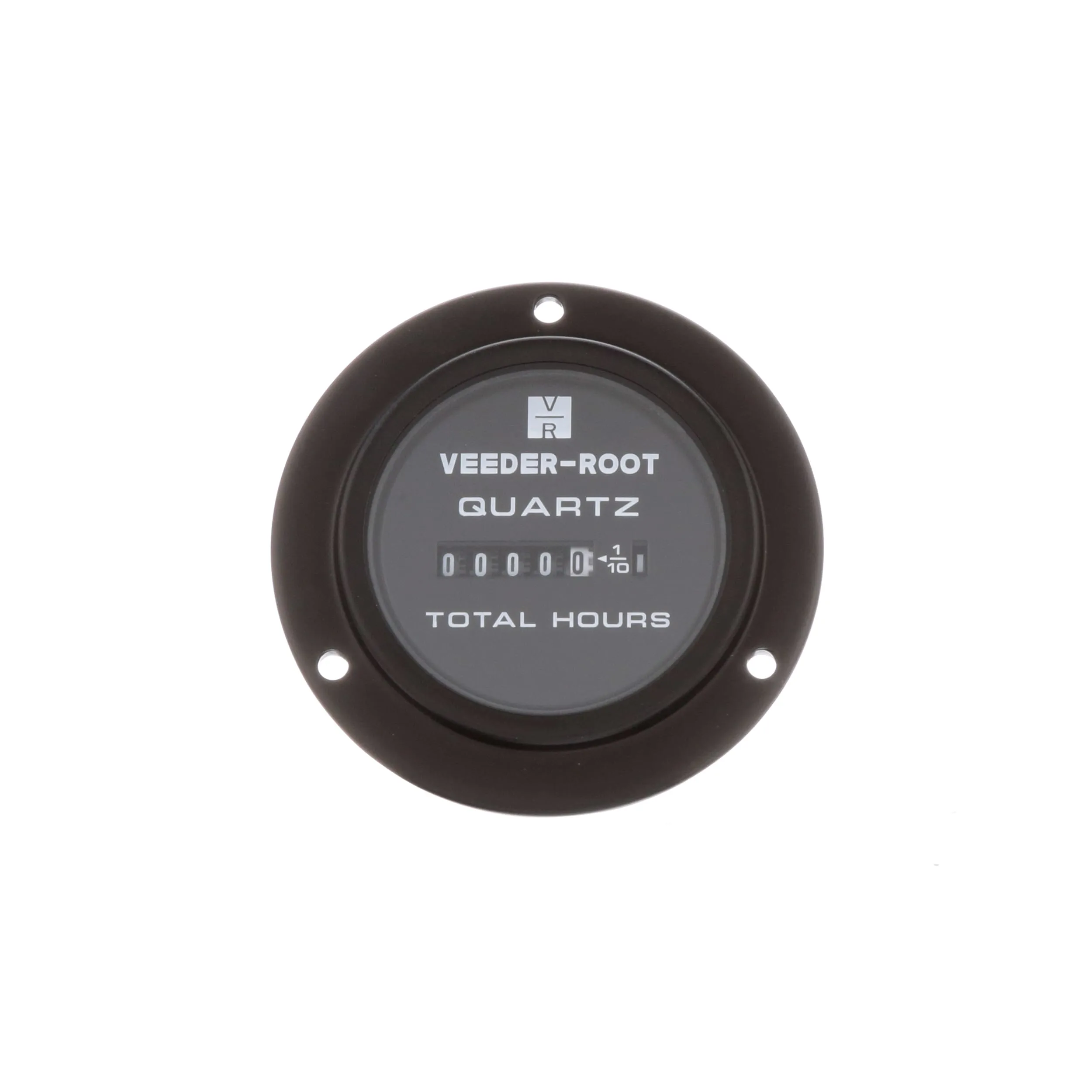

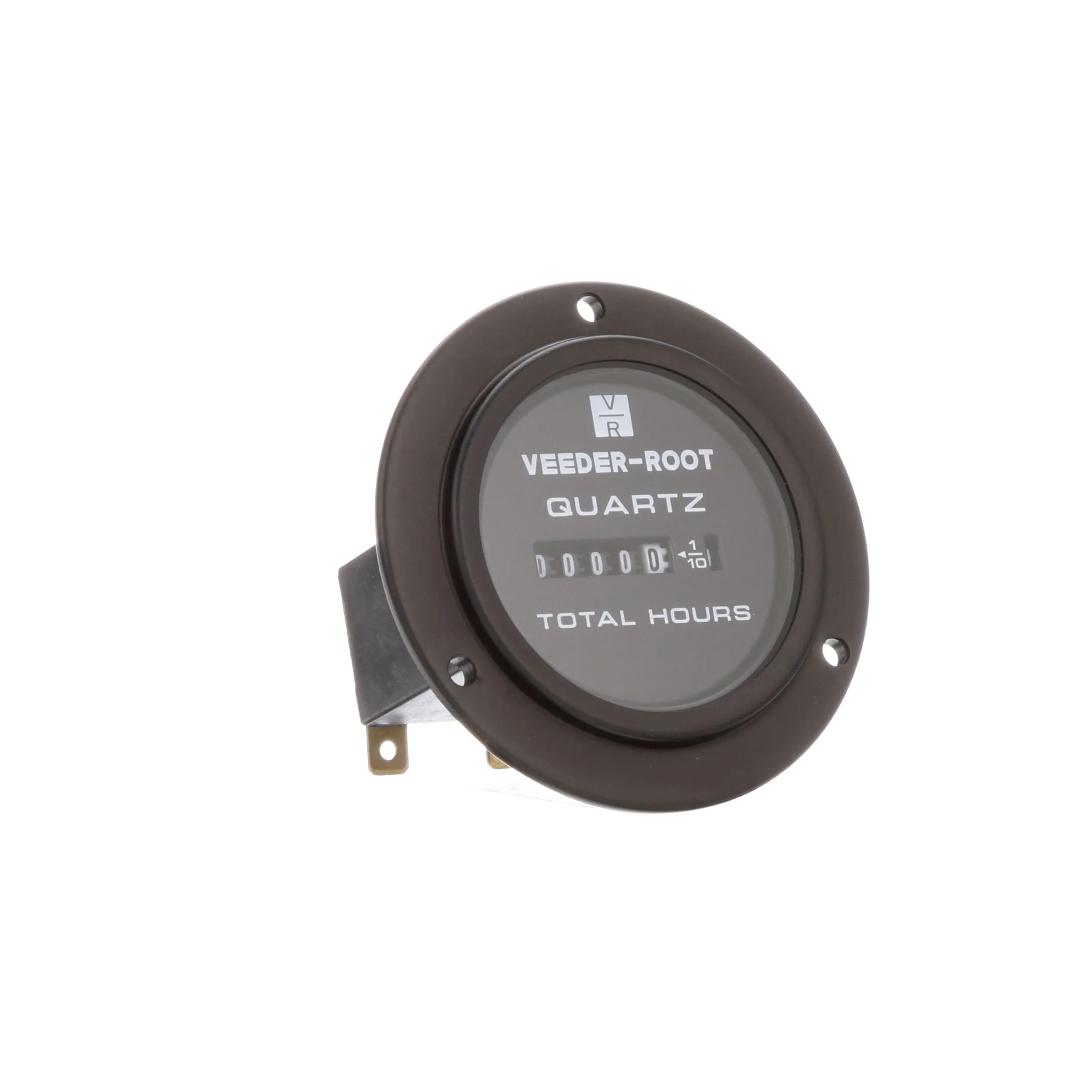

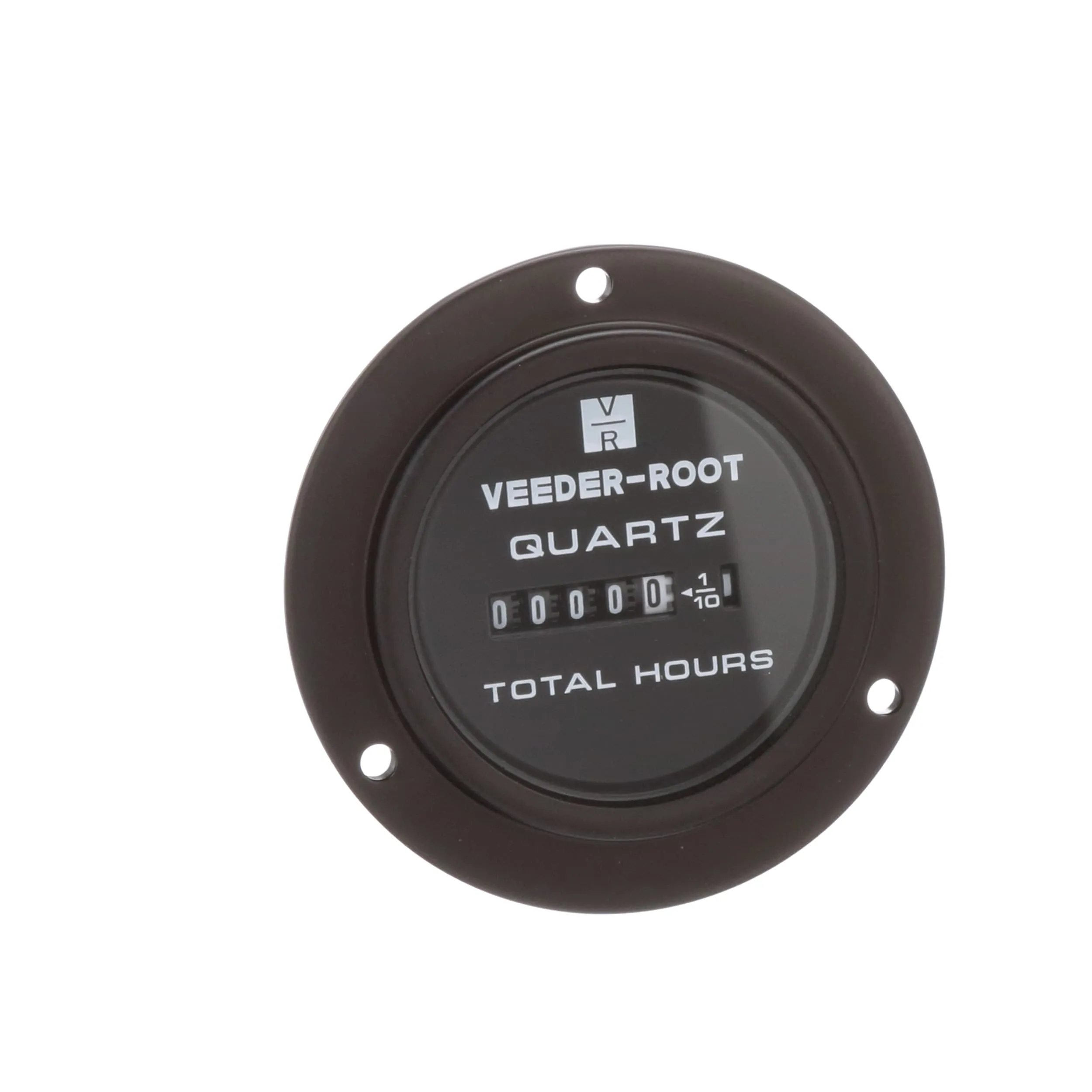

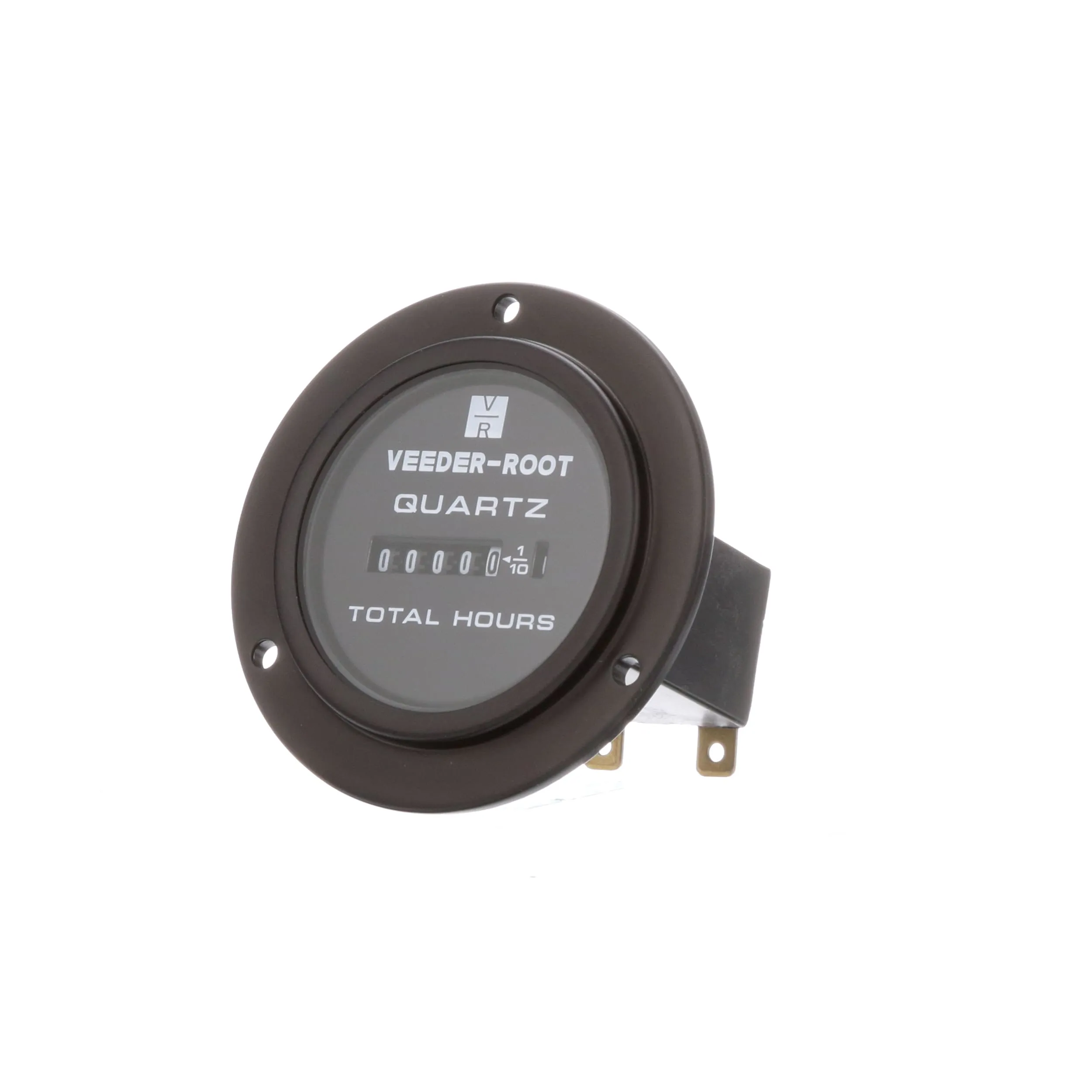

Series 7795 rugged and reliable electric hourmeters fit 2" diameter round or 0.95" × 1.45" rectangular panel cutouts. 1⁄10-hour increments with capacity to 99,999 hours (DC models — 9,999) and 1% accuracy. Models for 120 VAC or 10 to 32 VDC operation. Compact, easy to install. Sealed against dirt and moisture and non-resettable. Ideal for use on any equipment to determine usage, maintenance and warranty periods. Temperature Range: AC models — –65°F to 154°F (–18°C to 68°C); DC models — –40°F to 185°F (–40°C to 85°C).
